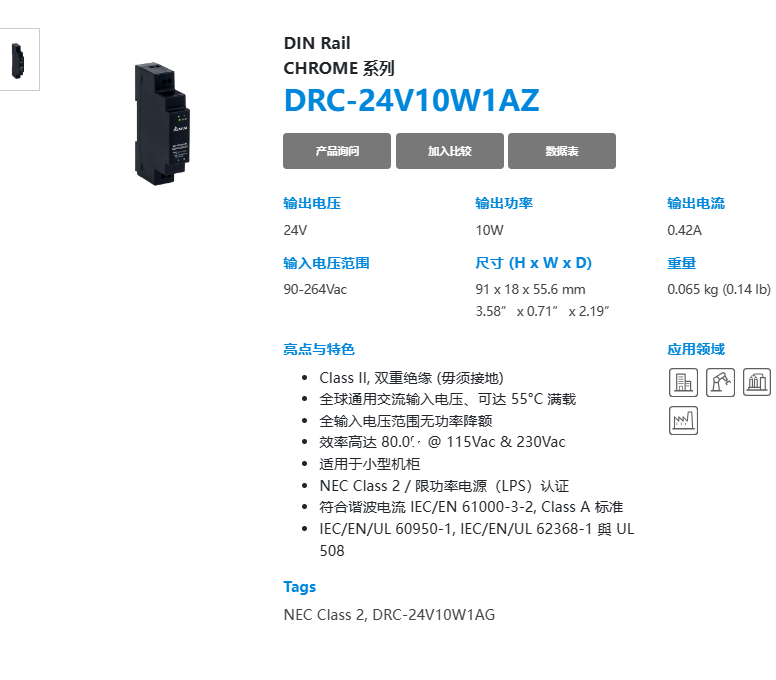

DRC-24V10W1AZ
| 輸出 | DRC-5V10W1A□ | DRC-12V10W1A□ | DRC-12V30W1A□ | DRC-12V60W1□□ | DRC-12V100W1AZp | DRC-24V10W1HZ | DRC-24V10W1HZ | DRC-24V30W1A□ | DRC-24V60W1A□ | DRC-24V100W1A□ | |
| 輸出電壓 | 5 V | 12 V | 12 V | 12 V | 12 V | 24 V | 24 V | 24 V | 24 V | 24 V | |
| 輸出電壓范圍 | 5 V (無電位器) | 12 V (無電位器) | 11.5-14.5 V | 11.5-14.0 V | 12-14 V | 24 V (無電位器) | 24 V (無電位器) | 23.52-24.48 V | 24-28 V | 22-24 V | |
| 輸出電流 | 0-1.5 A | 0-0.83 A | 0-2.1 A | 0-4.5 A | 0-6.0 A | 0-0.42 A | 0-0.42 A | 0-1.25 A | 0-2.5 A | 0-3.8 A | |
| 輸出功率 | 7.5 W | 9.96 W | 25 W | 54 W | 72 W | 10 W | 10 W | 30 W | 60 W | 91.2 W | |
| 紋波電壓 (20 MHz) | < 100 mVpp | ||||||||||
| 保持時間 | 115VAC | > 10 ms | > 25 ms | > 16 ms | > 20 ms | > 10 ms | > 25 ms | > 16 ms | > 10 ms | ||
| 230VAC | > 60 ms | > 100 ms | > 60 ms | ||||||||
| 輸入 | |||||||||||
| 輸入相數(shù) | 單相 | ||||||||||
| 輸入電壓范圍 | 90-264 VAC | 90-264 VAC (直流輸入 范圍 125-375 VDC) |
90-264 VAC | 90-264 VAC (直流輸入范圍125-375 VDC) 1) | |||||||
| 輸入頻率 | 47-63Hz | ||||||||||
| 輸入電流 | 115VAC | < 0.3 A | < 0.3 A | < 0.8 A | < 1.5 A | < 1.5 A | < 0.3 A | < 0.8 A | < 1.5 A | < 2.2 A | |
| 230VAC | < 0.2 A | < 0.2 A | < 0.6 A | < 1.0 A | < 0.9 A | < 0.2 A | < 0.6 A | < 1.0 A | |||
| 滿載效率(100% 負載) | 115VAC | > 77.0% | > 82.0% | > 85.0% | > 86.0% | > 80.0% | > 87.0% | > 88.0% | > 87.0% | ||
| 230VAC | > 76.0% | > 80.5% | > 89.0% | ||||||||
| 浪涌電流(冷啟動) | 115VAC | < 15 A | < 25 A | < 30 A | < 15 A | < 25 A | < 30 A | ||||
| 230VAC | < 30 A | < 50 A | < 60 A | < 65 A | < 30 A | < 50 A | < 60 A | ||||
| 功率因素 | 符合 EN 61000-3-2 | ||||||||||
| 漏電流 | 240VAC | < 0.25 mA | - | < 0.25 mA | |||||||
| 264 VAC | 、— | < 0.25 mA | — | ||||||||
| 機構(gòu) | |||||||||||
| 外殼 / 底架 | 塑料 | ||||||||||
| 尺寸(H × W × D) | mm | 91 × 18 × 55.6 | 91 × 18 × 55.6 | 91 × 53 × 55.6 | 91 × 71 × 55.6 | 91 × 89.9 × 55.6 | 91 × 18 × 55.6 | 91 × 18 × 55.6 | 91 × 53 × 55.6 | 91 × 71 × 55.6 | 91 × 89.9 × 55.6 |
| inch | 3.58 × 0.71 × 2.19 | 3.58 × 0.71 × 2.19 | 3.58 × 2.09 × 2.19 | 3.58 × 2.80 × 2.19 | 3.58 × 3.54 × 2.19 | 3.58 × 0.71 × 2.19 | 3.58 × 0.71 × 2.19 | 3.58 × 2.09 × 2.19 | 3.58 × 2.80 × 2.19 | 3.58 × 3.54 × 2.19 | |
| 重量 | kg | 0.06 | 0.06 | 0.14 | 0.22 | 0.36 | 0.065 | 0.065 | 0.14 | 0.22 | 0.35 |
| lb | 0.13 | 0.13 | 0.31 | 0.49 | 0.79 | 0.14 | 0.14 | 0.31 | 0.49 | 0.77 | |
| 冷卻方式 | 自然對流 | ||||||||||
| 平均故障間隔時間 | > 500,000 hrs | ||||||||||
| 環(huán)境 | |||||||||||
| 運行溫度 | -25°C 至 +71°C | ||||||||||
| 儲存溫度 | -25°C 至 +85°C | -40°C 至 +85°C | -25°C 至 +85°C | ||||||||
| 運行濕度 | 5 至 95% RH (無冷凝) | ||||||||||
| 運行海拔高度 | 0 至 2,000 m (0 至 6,560 ft) | ||||||||||
